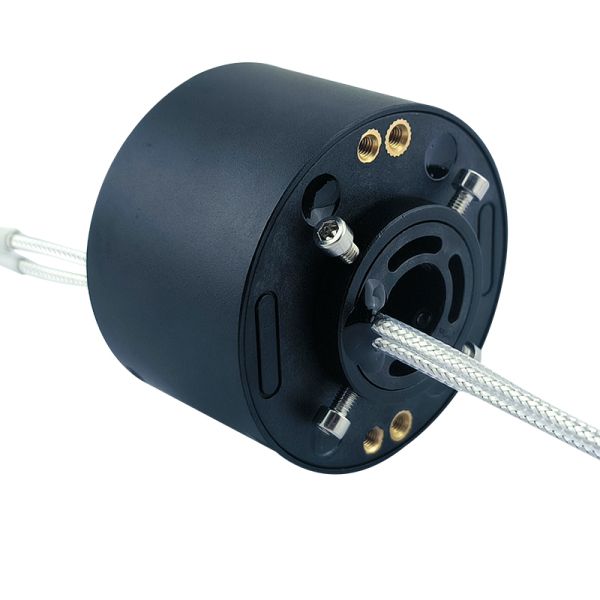

6-channel PT100 signal slip ring is specifically designed for temperature sensor signal transmission. It utilizes high-quality PT100 dedicated wire cores and a black aluminum alloy housing. The product features a 12.7mm center hole design and an outer diameter of only 56mm. It supports 220V operating voltage, has an IP51 protection rating, and a maximum speed of 250RPM, ensuring stable and lossless temperature signal transmission during rotation.
6-channel PT100 signal slip ring Key Features
PT100 Dedicated Design: Utilizes dedicated PT100 wire cores to ensure the accuracy and stability of temperature sensor signal transmission.
Compact Hollow Structure: A 12.7mm central bore provides space for conduit passage, while the 56mm outer diameter meets compact installation requirements.
Industrial-Grade Protection: IP51 protection rating effectively protects against dust and vertical dripping, suitable for various industrial environments.
High-Speed Rotation Capability: Maximum speed of 250RPM meets the speed requirements of most rotating equipment.
6-channel PT100 signal slip ring Performance Parameters
| Parameter | Value |
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥500MΩ/300VDC |
| Dynamic resistance change value | ＜0.01Ω |
| Rated voltage | 0～220VDC/VAC |
| Wire Specifications | Teflon wire |
| Wire length | Rotor 300mm; stator 300mm (reference value) |
| Operating temperature | -30℃～+70℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | aluminum alloy |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 20 million rpm |
6-channel PT100 signal slip ring Product Dimensions
6-channel PT100 signal slip ring Applications
Temperature-controlled rotary equipment: Temperature monitoring of rotating parts in industrial ovens and drying equipment.
Food processing machinery: Temperature sensor signal transmission for rotary cooking and sterilization equipment.
Plastics processing equipment: Signal transmission for rotary mold temperature control systems in injection molding machines and extruders.
Laboratory testing equipment: Temperature signal acquisition for rotating environmental chambers and temperature-controlled test benches.
6-channel PT100 signal slip ring Frequently Asked Questions
Q1: What is the difference between PT100 core wire and ordinary signal core wire?
A: The PT100 dedicated core wire is designed specifically for the signal characteristics of temperature sensors, featuring lower resistance deviation and better temperature stability, ensuring accurate temperature measurement.
Q2: What types of conduits can pass through the 12.7mm center hole?
A: The 12.7mm center hole is suitable for passing sensor cables, control circuits, thin air tubes, etc., providing a convenient passage for internal wiring in equipment.
Q3: Does the product support higher speed operation?
A: The standard version of this product is optimized for 250RPM. For higher speed requirements, we can provide customized solutions.
