Product Description
This hybrid slip ring for circuits and signals offers five 5A circuits and three shielded signal lines, enabling simultaneous rotational transmission of circuits and signals. It has an inner diameter of 12.7mm, an outer diameter of 56mm, and can rotate at speeds up to 200 RPM. It supports voltages up to 220V.
Product Features
1. Hybrid Transmission, Highly Integrated
Innovatively integrates five high-power circuits and three signal lines into one unit.
This enables synchronous, continuous, 360-degree rotational transmission of power (up to 5A per channel) and precision signals, simplifying device structure and eliminating cable entanglement.
2. High-Current Power Transmission
Equipped with five independent power loops, each capable of carrying a rated current of up to 5A, it provides a stable and reliable power source for rotating equipment.
3. High-Fidelity Signal Transmission
All three signal channels utilize a professional, independently shielded design to effectively suppress electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring the integrity and high fidelity of data and sensor signal transmission.
4. Compact and Space-Saving
With a precise and compact design, its outer diameter is only 56mm, and its inner diameter (through-hole) is 12.7mm. Its compact size makes it ideal for modern precision equipment with strictly space-constrained installations.
5. High Performance and Reliability
Supports continuous rotation up to 200 RPM for smooth operation.
The product supports operating voltages up to 220V, making it suitable for a wide range of applications.
The use of high-quality electrical contact materials (such as gold-gold contacts) ensures low contact resistance, low noise, and an extremely long operating life.
Product Parameters
| Parameter Name | Power | Signal |
| Dielectric strength | 300VCA@50Hz,60s | 300VCA@50Hz,60s |
| Insulation resistance | ≥300MΩ/300VDC | ≥300MΩ/300VDC |
| Dynamic resistance change value | ＜0.01Ω |
| Rated voltage | 0～220VDC/VAC |
| Wire Specifications | AWG Teflon wire (actually change the wire specifications according to the load conditions) |
| Wire length | Default 300mm (can be adjusted as required) |
| Operating temperature | 0～85%RH |
| Operating humidity | -30℃～+80℃ |
| Protection level | IP51 |
| Shell material | aluminum alloy |
| Rotational torque | 0.1N.m,+0.03N.m/6-way |
Dimensional Drawing

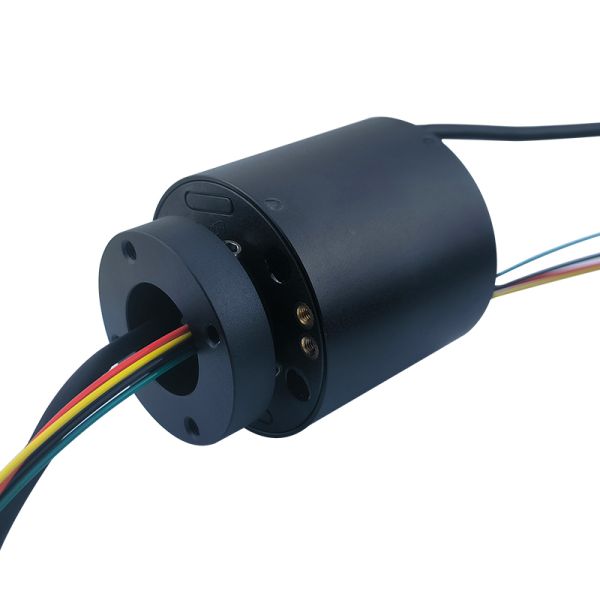

Product images
Applications
- Wind power generation: connecting the rotating nacelle (generator, control system) with the fixed tower (grid, control system)
- Industrial automation/robotics: rotating worktable/indexing plate, robot joints
- Medical imaging equipment: CT scanner, X-ray machine (rotating C-arm)
- Packaging machinery/filling equipment: power supply and signal control of filling head and labeling head
- Testing equipment: such as turntable test, centrifugal test, etc.
- Security monitoring: high-speed dome camera
- Ship/maritime: such as rotating radar mast, pod thruster, crane, etc.
