6 In 6 Out Rotary Air Connector G3/8" Aluminum Alloy Housing For Robot Arm

Product Categories
Shenzhen Guren Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

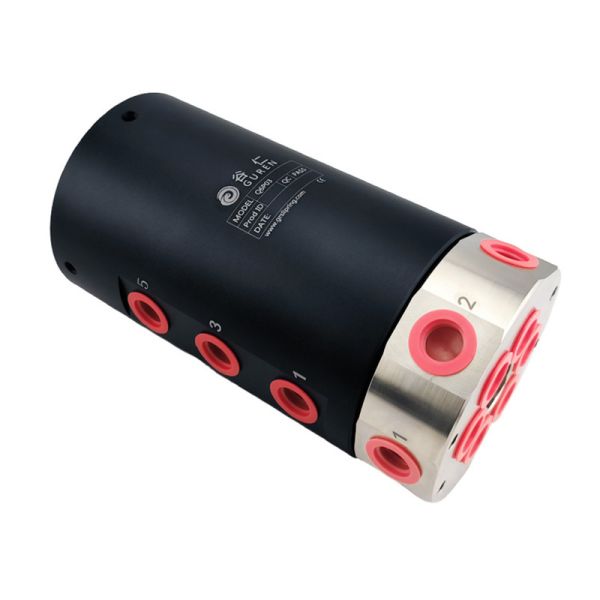

6 In 6 Out Rotary Air Connector G3/8" Aluminum Alloy Housing For Robot Arm

Brand Name : GuRen

Model Number : Q6P03

Certification : ISO9001.CE.RoHS

Place of Origin : china

MOQ : 1

Price : ＄19-199

Payment Terms : L/C,D/P,T/T

Supply Ability : 1K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Number of channels : 6 channels

Inner diameter : 18mm

Outer diameter : 86mm

High : 164mm

Housing Material : Aluminum

Applicable trachea : 10～12mm

Interface Specifications : G3/8”

Contact Now

6 in 6 out Rotary Air Connector G3/8" Connector Aluminum Alloy Housing for Robot Arm
Product Attributes
Number of channels 6 channels
Inner diameter 18mm
Outer diameter 86mm
Height 164mm
Housing Material Aluminum
Applicable trachea 10～12mm
Interface Specifications G3/8"
Product Description

Q6P03 rotary gas joint supports 1MPa nitrogen mixed gas supply with O-ring sealing structure, suitable for 10-12mm air pipe.

Key Features
  • Six-channel rotary joint with G3/8" standard threaded interface, designed for 10-12mm air pipe with larger flow channel for industrial applications
  • Optimized structural design with compact size, robot arm adapts to 0.6N*m torque
  • Supports transmission of compressed air, nitrogen, hydrogen, and chemical mixed gases
  • Maximum speed of 300rpm with 20 million revolution service life for stable, durable performance
Technical Specifications
Transmission medium Gas (liquid can be customized)
Working life 20 million revolutions (reference value)
Maximum speed 300RPM
Overpressure -90KPa～1MPa or vacuum
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque and number of channels are positively correlated)
Product Dimensions
6 In 6 Out Rotary Air Connector G3/8" Aluminum Alloy Housing For Robot Arm
Product Images
6 In 6 Out Rotary Air Connector G3/8" Aluminum Alloy Housing For Robot Arm 6 In 6 Out Rotary Air Connector G3/8" Aluminum Alloy Housing For Robot Arm 6 In 6 Out Rotary Air Connector G3/8" Aluminum Alloy Housing For Robot Arm
Application Scenarios

Designed for 360-degree continuous rotation applications requiring uninterrupted air pressure, vacuum, power supply and signal transmission. Ideal for:

  • Non-standard automation equipment
  • Lithium battery and mobile phone testing equipment
  • Laser equipment and coating machines
  • Packaging film equipment for soft-pack batteries
  • Electronic semiconductor industrial automation
  • Optoelectronic flat panel display manufacturing
  • Rotary worktables and wind power equipment
  • AGV lifting platforms and capsule filling machines
